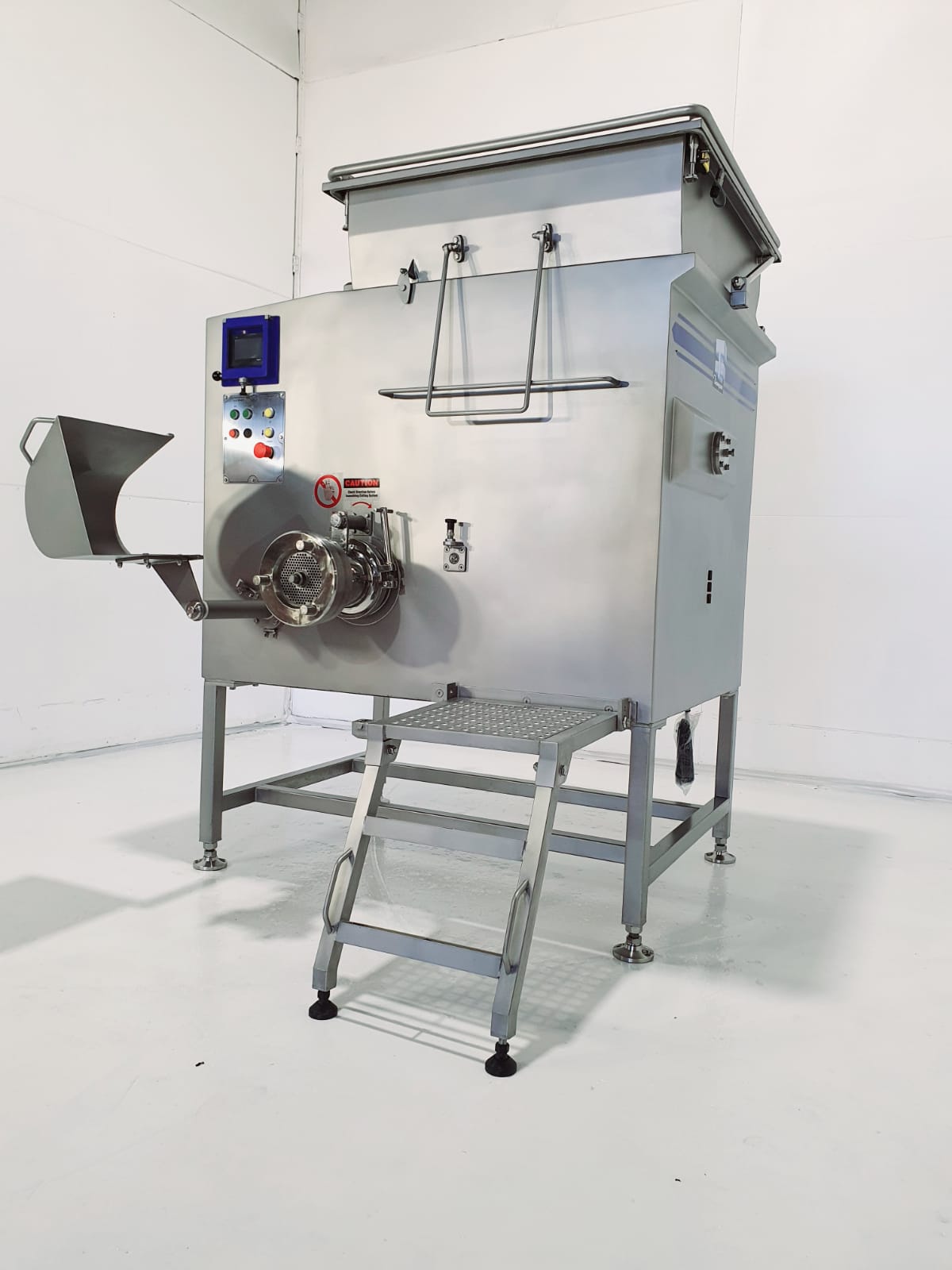

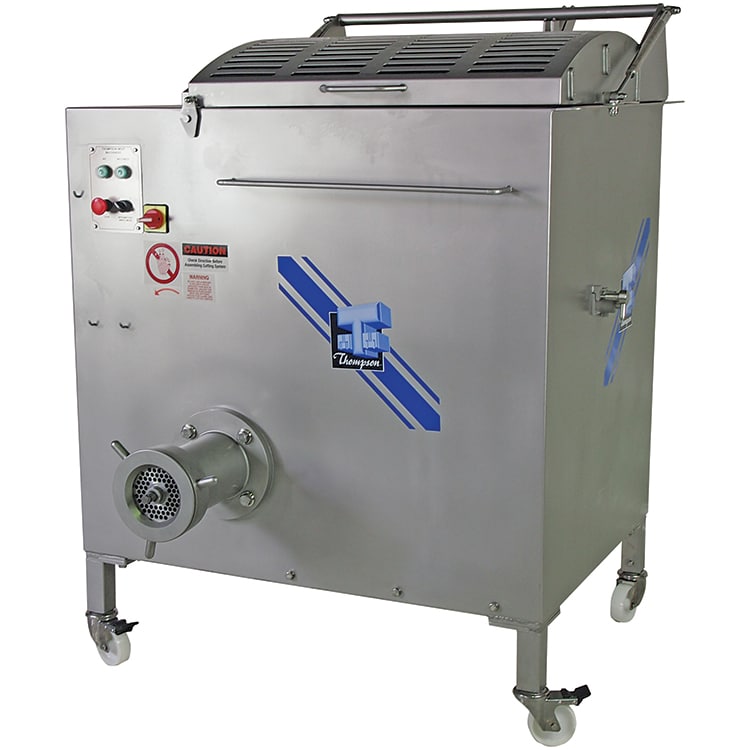

Mixer Mincer Thompson 3200

The Thompson 3200 Mixer Mincer is constructed from Heavy Gauges Stainless Steel including Stainless Steel
Feedscrew and Paddle. It is Fully Seam Welded Inside and Outside and finished with smooth hygienic surfaces in an appealing satin finish to achieve clean bowl on product discharge. Removable Stainless Steel Mixing Paddle ensures easy and thorough cleaning providing maximum hygiene.

The Unique Design Feedscrew Channel with right angle mixing paddle that feeds and delivers continuously to provide Efficient Mince and Product Discharge with a High Definition Meat Particle and Cut Quality.

The Reciprocating Mixing Action efficiently yet Gently Blends Fat and Lean Product into homogenous batches. This Guarantees Product Consistency.

The Thompson 3200 Mixer Mincer is designed to offer High Capacity Production in a Compact Size. Supermarkets, butcher shops and quality processing facilities will appreciate the performance of the Thompson 3200 Mixer Mincer. It is designed & built to withstand the High Demands of Larger Production.

Finance from $253 per week

Open below for demo

Description

MINCE MOTOR (KW)
9.2kW
MIX MOTOR (KW)
2.2kW
BOWL CAPACITY
300L
MIX CAPACITY FRESH TRIM
200kg
POWER SUPPLY
30A
FULL LOAD CURRENT
24A
SHIP SIZE L X W X H (CM)
140x135x175
SHIP WEIGHT
600kg

Technical data is to be used as a guide only and is subject to change without notice. Dimensions and weight may vary in the course of development

OPTIONS

Stainless Steel Stand to elevate Mixer Mincer to allow discharge into 200L bins
Feedscrew Ejector to eject feedscrew and cutting system during disassembly and cleaning procedure
Foot pedal lid closing device to be fitted when machine is raised to discharge into 200L bins
Sensor to interlock lid with Column Hoist
Ingredients and liquid pouring channel to lid
Feedscrew, knives and plates carriage
Gemini System allows 2 machines to be joined for continuous 1st and 2nd cut operation
Intermittent feed during mince cycle to reduce product agitation and protein extraction
PLC with HMI through Dialogue Smart Embedded Panels enables a multitude of variations and functionalities to the Mixer Mincer operation. Multiple mix cycle operation can be programmed and stored for various recipes
Variable Speed Drive on Mix Drive controls the mix and feed cycles to reduce over mixing of product while it is being discharged
Variable Speed Drive on Mince Drive optimise the output production rate
Inspection Step Assembly provides access to the bowl of the machine for inspection or cleaning

Download Thompson  3200 Mixer Mincer Brochure
